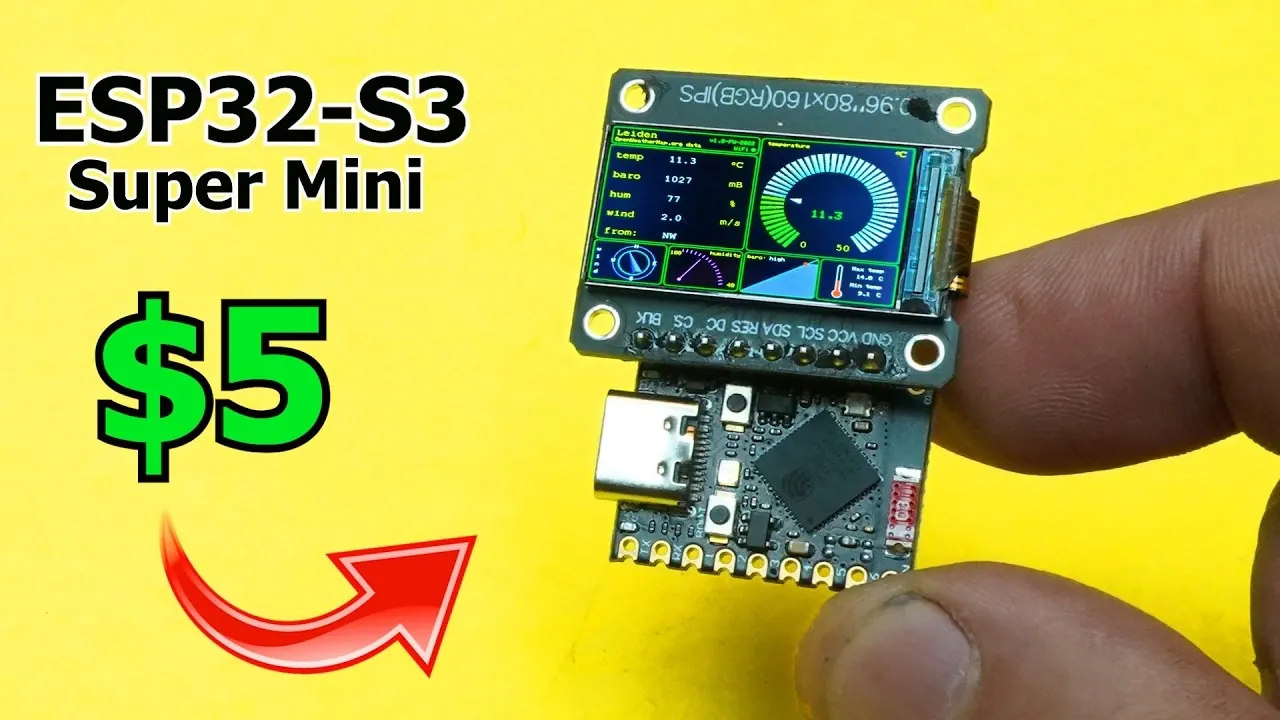

The ESP32-S3 Super Mini is a $5 microcontroller board that combines compact design with versatile functionality. As highlighted by Hacktuber, it features Wi-Fi and Bluetooth connectivity, making it suitable for IoT applications and smart devices. With 45 GPIO pins, it supports integration with peripherals like sensors, LEDs and buttons. The inclusion of a USB Type-C port with OTG functionality and built-in lithium battery support further enhances its usability for portable and energy-efficient designs.
Explore how the ESP32-S3 Super Mini supports real-time environmental monitoring with sensors like the AHT20 and BME280. Learn how its compatibility with RGB LEDs and TFT screens enables interactive designs and understand its energy monitoring features to optimize power consumption. This analysis provides practical insights for developers working on a range of projects, from DIY electronics to advanced IoT systems.
Core Features That Set It Apart
TL;DR Key Takeaways :
- The ESP32-S3 Super Mini is a compact and affordable microcontroller board priced at just $5, offering advanced features like Wi-Fi, Bluetooth and extensive sensor compatibility.
- Key hardware features include 45 GPIO pins, USB Type-C with OTG functionality, integrated lithium battery support and a programmable RGB LED for enhanced project flexibility.
- The board supports environmental sensors (e.g., AHT20, BME280) and small TFT screens, making it ideal for applications like portable weather stations and real-time data visualization.
- Its robust capabilities, including power monitoring, debugging tools and custom firmware support, make it suitable for IoT, smart devices and DIY electronics projects.
- The ESP32-S3 Super Mini stands out for its versatility, combining affordability with high performance, making it an excellent choice for both beginners and experienced developers.
The ESP32-S3 Super Mini is engineered to deliver high performance in a compact form factor. Its hardware and software capabilities make it suitable for a wide variety of applications. Here’s what makes this board stand out:
- Wi-Fi and Bluetooth Connectivity: Equipped with dual-mode Bluetooth and 2.4 GHz Wi-Fi, the board ensures seamless wireless communication, making it perfect for IoT and smart device projects.
- USB Type-C Port: Features USB OTG functionality and a USB serial JTAG controller, simplifying debugging and making sure smooth development workflows.
- 45 GPIO Pins: Offers extensive connectivity options for integrating sensors, LEDs, buttons and other peripherals, allowing complex project designs.
- Lithium Battery Support: Includes an integrated battery management system, making it ideal for portable and rechargeable projects.
- Temperature Sensor: Monitors CPU temperature to ensure stable and reliable operation, even under demanding conditions.
- RGB LED: A programmable RGB LED provides visual feedback for system status or custom indicators, enhancing user interaction.
- TFT Screen Compatibility: Supports small displays, such as 60×80 pixel TFT screens, for real-time data visualization and user interfaces.
- Environmental Sensor Compatibility: Works seamlessly with sensors like the AHT20 and BME280 to measure temperature, humidity, pressure and altitude, making it suitable for environmental monitoring.
- Power Monitoring: Tracks energy consumption during operation and charging, allowing users to optimize power usage for energy-efficient designs.
These features collectively position the ESP32-S3 Super Mini as a versatile and reliable platform for a wide range of applications, from simple DIY projects to advanced IoT systems.
Practical Application: Building a Portable Weather Station
One of the most practical and engaging applications of the ESP32-S3 Super Mini is the creation of a portable weather station. This project demonstrates the board’s ability to integrate multiple components and deliver real-time data in a compact, user-friendly format.
- Environmental Sensors: Connect sensors such as the AHT20 and BME280 to measure key environmental parameters, including temperature, humidity and atmospheric pressure.
- Real-Time Data Display: Use a small TFT screen to display sensor readings, making sure portability while maintaining functionality.
- Remote Monitoring: Use the board’s Wi-Fi capabilities to access live data remotely via a smartphone or computer, enhancing convenience and usability.
- Battery-Powered Operation: The built-in lithium battery support allows for continuous operation without reliance on external power sources, making it ideal for outdoor or mobile use.
This project not only highlights the board’s technical capabilities but also underscores its potential to serve as the foundation for innovative, real-world applications. By combining affordability with advanced features, the ESP32-S3 Super Mini enables users to create functional and portable devices with ease.
Learn more about ESP32-S3 with other articles and guides we have written below.
- $5 ESP32-S3 Super Mini Packs Wi-Fi and Bluetooth
- $4 ESP32-S3 Super Mini Packs a 0.96-Inch IPS TFT Screen
- ESP32-S3 Automation System Packs 16 Relays for Smart Homes
- ESP32 S31 Devkit Hands-on: 320 MHz RISC-V Chip Adds Wi-Fi 6
- ESP32-S3 Super Mini Brings 240 MHz Dual-Core Power For $4
- $4 ESP32 Module Brings Wi-Fi and Bluetooth to IoT Projects
- $5 ESP32 S3 Board Packs a 240 MHz Dual-Core Chip
- ESP32 Lineup Compared: S3 Handles AI While C6 Tackles Matter
- $9 CYD ESP32 Module Includes a 2.88-Inch LCD Screen
- Build a DIY Open source Flipper Zero Using a ESP32-DIV
Additional Features and Versatile Applications
Beyond its core features, the ESP32-S3 Super Mini offers additional tools and flexibility that expand its usability across various domains. These include:
- Custom Firmware Support: Developers can tailor the board’s functionality by adding features such as alarms, data logging, or remote notifications, allowing highly customized applications.
- Expandability: The 45 GPIO pins allow for the connection of additional sensors, actuators, or input devices, making it suitable for more complex and ambitious projects.
- Debugging Tools: The USB serial JTAG controller simplifies troubleshooting and optimization during development, saving time and effort.
These capabilities make the ESP32-S3 Super Mini an excellent choice for a variety of applications, including:
- Portable, rechargeable devices that require efficient power management.
- Real-time environmental monitoring systems for personal or professional use.
- Remote data access and control via Wi-Fi, ideal for IoT and smart home projects.
- DIY electronics projects that demand compact and efficient hardware solutions.
The board’s versatility ensures that it can adapt to a wide range of use cases, from simple prototypes to fully functional systems.
Why the ESP32-S3 Super Mini Stands Out
The ESP32-S3 Super Mini is more than just an affordable microcontroller, it’s a versatile and powerful platform that caters to both beginners and experienced developers. Its combination of advanced features, such as Wi-Fi, Bluetooth, GPIO pins and sensor compatibility, makes it an excellent choice for a wide range of projects. Whether you’re building a weather station, exploring IoT applications, or experimenting with DIY electronics, this $5 powerhouse delivers the performance, flexibility and reliability needed to succeed. Its affordability and robust feature set make it a standout option in the world of microcontrollers, empowering users to innovate and create with confidence.
Media Credit: Hacktuber
