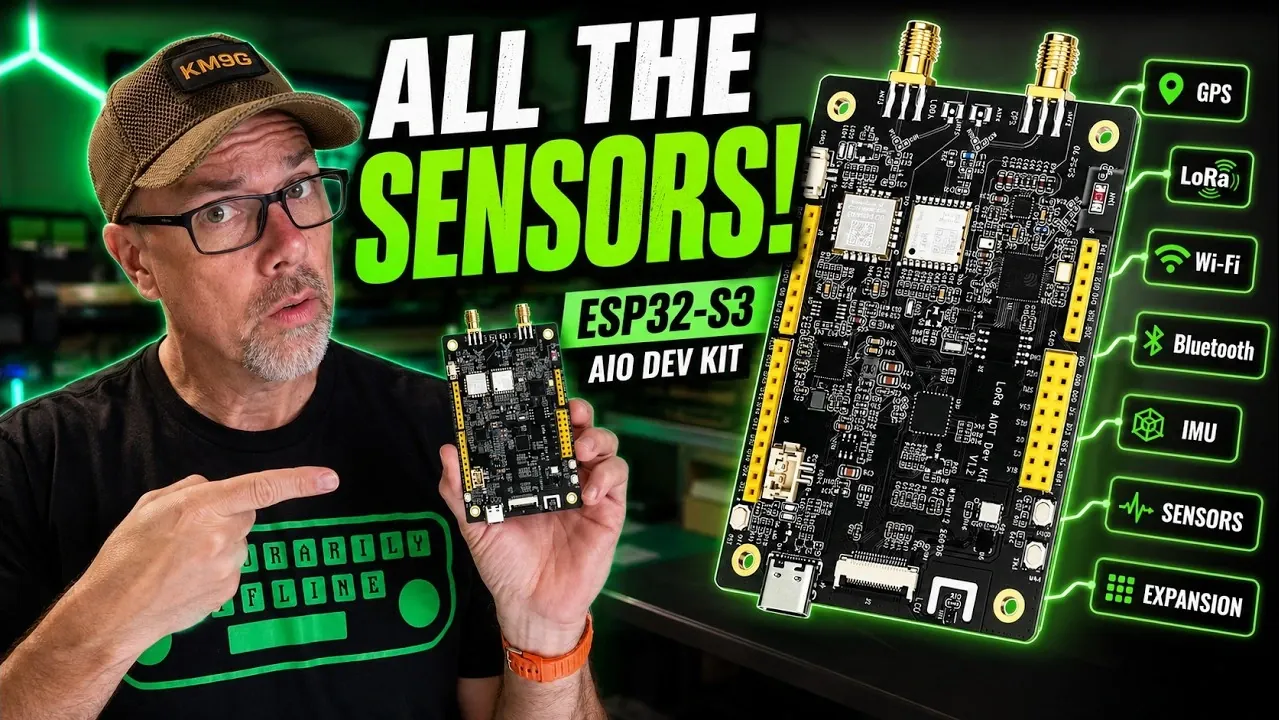

Meshnology W10 LoRa AIoT Dev Kit Runs ESP32 S3 at 240 MHz

The Meshnology W10 LoRa AIoT Dev Kit, powered by the ESP32-S3 dual-core processor, offers a robust platform for IoT, AI and environmental monitoring projects. With features like a 240 MHz processor, 8 MB of pseudo-static RAM and integrated LoRa communication via the SX1262 module, this development board is designed for demanding applications such as smart agriculture and remote sensor stations. Temporarily Offline examines how its combination of advanced connectivity options, including Wi-Fi, Bluetooth 5 LE and GNSS support, alongside built-in sensors like the SHT41 for temperature and humidity monitoring, positions the W10 as a versatile choice for developers.

Dive into this breakdown to explore how the W10’s capabilities can enhance your projects. Gain insight into its power management features, such as USB-C fast charging and a dedicated lithium battery interface, which make it well-suited for portable and off-grid applications. Discover how its expandable design, including Arduino-compatible ports and support for peripherals like cameras and displays, allows for tailored solutions across diverse use cases. This guide provides a detailed look at the board’s potential to meet modern IoT and AI challenges.

Key Features at a Glance

The Meshnology W10 is equipped with a comprehensive set of features that cater to a wide range of applications. Its design emphasizes versatility and performance, making it suitable for both professional and hobbyist projects. Below are its core components and capabilities:

• Processor: The ESP32-S3 dual-core processor operates at 240 MHz, supported by 8 MB of pseudo-static RAM and 16 MB of flash memory, making sure smooth performance for demanding tasks.
• LoRa Module: The SX1262 module supports the 850-930 MHz frequency band, allowing long-range, low-power communication for remote applications.
• GNSS Support: Multi-constellation capabilities (GPS, GLONASS, BeiDou, QZSS) provide precise positioning and tracking for navigation and location-based projects.
• Sensors: Includes the SHT41 for temperature and humidity monitoring, the QMI8658 6-axis IMU for motion detection and an ES8311 audio codec for voice-based applications.
• Wireless Connectivity: Offers 2.4 GHz Wi-Fi and Bluetooth 5 LE for seamless integration with other devices and cloud platforms.
• Display: A 1.54-inch IPS screen delivers clear and vibrant visual feedback for user interfaces and data visualization.
• Power Management: Features a USB-C interface with Power Delivery (PD) fast charging and a dedicated lithium battery interface for portable use.

Processing Power and Memory

At the heart of the Meshnology W10 is the ESP32-S3 processor, a dual-core powerhouse designed to handle complex workloads. With 8 MB of pseudo-static RAM and 16 MB of flash memory, the board provides ample resources for tasks such as real-time data processing, AI inference and multi-sensor integration. This combination of processing power and memory ensures the board can efficiently manage demanding IoT and AI applications, making it a reliable choice for developers aiming to build sophisticated systems.

Browse through more resources below from our in-depth content covering more areas on ESP32.

• $5 ESP32-S3 Super Mini Packs Wi-Fi and Bluetooth
• The $4 ESP32 S3 Super Mini Packs a 240 MHz Dual-Core Chip
• How an $8 ESP32 S3 Microcontroller Runs a 28.9M Parameter Local LLM
• 5 ESP32 Projects Worth Building in 2026: Such as an Apple HomeKit Controller
• $4 ESP32 Module Brings Wi-Fi and Bluetooth to IoT Projects
• Replacing Security Cameras with Three $10 ESP32S3 Wi-Fi Boards
• ESP32-S3 Super Mini Costs $5 and Packs Wi-Fi and Bluetooth
• Gemini 4 Argon Writes ESP Mosaico Firmware to Control RGB LEDs
• ESP32-S3 Super Mini Brings 240 MHz Dual-Core Power For $4
• ESP32 S31 Devkit Hands-on: 320 MHz RISC-V Chip Adds Wi-Fi 6

Connectivity for IoT and Beyond

The Meshnology W10 is designed to meet the connectivity demands of modern IoT systems, offering a range of options to ensure reliable and efficient communication:

• LoRa Communication: The SX1262 module supports long-range, low-power communication, making it ideal for remote monitoring, smart agriculture and off-grid applications.
• Wi-Fi and Bluetooth: The 2.4 GHz Wi-Fi and Bluetooth 5 LE capabilities allow for seamless integration with devices, networks and cloud platforms, making sure robust and flexible connectivity.
• Antenna Options: An SMA socket and patch ceramic antenna enhance signal strength and reliability for wireless communication, even in challenging environments.

Integrated Sensors and Peripherals

The Meshnology W10 stands out with its array of integrated sensors and peripheral interfaces, allowing developers to create diverse and multifunctional applications:

• Environmental Monitoring: The SHT41 sensor measures temperature and humidity with high accuracy, while the QMI8658 IMU tracks motion and orientation, making it suitable for environmental and industrial monitoring.
• Audio Processing: The ES8311 audio codec, combined with the onboard microphone and speaker, supports voice command applications and AI-powered audio processing.
• Peripheral Integration: Arduino-compatible expansion ports, an LCD FPC interface and a camera interface allow for the addition of modules such as cameras, displays and other peripherals to enhance functionality.

Power Management and Portability

Designed with portability and energy efficiency in mind, the Meshnology W10 ensures reliable performance in both stationary and mobile applications:

• USB-C Interface: Supports Power Delivery (PD) fast charging, allowing for quick and efficient power input to keep the board operational in demanding scenarios.
• Battery Support: A dedicated lithium battery interface makes the board suitable for portable and off-grid projects, offering flexibility for field deployments.
• Power Regulation: The AXP2101 power management chip ensures stable and efficient power distribution, even under varying conditions, enhancing the board’s reliability.

Customization and Expansion

The Meshnology W10 is designed to adapt to a wide range of project requirements, offering extensive customization and expansion options:

• Peripheral Compatibility: Supports additional modules such as cameras, touch displays and audio components, allowing developers to tailor the board to specific use cases.
• 3D-Printed Cases: Provides the option to create custom enclosures for added portability and protection during field use.
• GPIO Expansion: The MCP23017 I2C chip expands the available GPIOs, allowing for more complex setups and additional hardware integration.

Applications and Use Cases

The versatility of the Meshnology W10 makes it a valuable tool for a wide range of applications, from IoT to AI and beyond:

• IoT and AI Projects: Build smart devices with voice command capabilities, AI integration and real-time data processing for innovative solutions.
• Environmental Monitoring: Develop sensor stations for collecting and analyzing indoor and outdoor environmental data, such as temperature, humidity and motion.
• Off-Grid Solutions: Use LoRa communication for remote tracking, smart agriculture systems and other applications requiring long-range, low-power connectivity.

The Meshnology W10 LoRa AIoT Dev Kit is a comprehensive and versatile development platform that combines powerful processing, advanced connectivity and a rich array of features. Its ability to support IoT, AI and environmental monitoring applications makes it an indispensable tool for developers and engineers. Whether you’re a hobbyist exploring new ideas or a professional building next-generation smart devices, the Meshnology W10 offers the flexibility and functionality to bring your projects to life.

Media Credit: Temporarily Offline
