Running a language model on an $8 ESP32 S3 microcontroller might seem improbable, but The Stack demonstrates how it’s possible through a combination of hardware-aware optimizations and creative engineering. With just 0.5 MB of fast SRAM and 8 MB of slower PSRAM, the ESP32 S3 is typically used for lightweight tasks like managing Wi-Fi or controlling sensors. Yet, engineers managed to compress a 28.9 million parameter model into 14.9 MB, fitting it within the chip’s 16 MB of flash storage. By strategically allocating memory, such as storing lookup tables in slower PSRAM and reserving faster SRAM for critical operations, the system achieves a modest yet functional performance, capable of generating simple outputs like short stories.
This overview explores the technical strategies that made this achievement possible, including parameter compression, memory management techniques and the use of a specialized dataset called “TinyStories.” You’ll also gain insight into how the llama2.c inference engine was tailored to maximize efficiency on constrained hardware. Finally, the discussion highlights the practical limitations of this setup, such as its restricted computational capabilities and reflects on the broader implications for deploying AI in cost-sensitive, resource-limited environments.
ESP32 Local AI
TL;DR Key Takeaways :
- An $8 ESP32 S3 microcontroller, typically used for basic tasks, was successfully repurposed to run a 28.9 million parameter language model locally through advanced optimizations.
- Key techniques included parameter compression, memory allocation strategies and efficient execution, allowing the model to fit within the hardware’s limited resources.
- The language model was trained on a simplified “TinyStories” dataset, tailored for the hardware’s constraints, allowing it to generate simple outputs like children’s stories.
- The project utilized llama2.c, a lightweight inference engine written in C, to maximize performance on the resource-constrained ESP32 S3.
- While demonstrating the potential of low-cost AI hardware, the system’s practical use is limited to narrow applications due to shared memory usage and restricted computational capabilities.

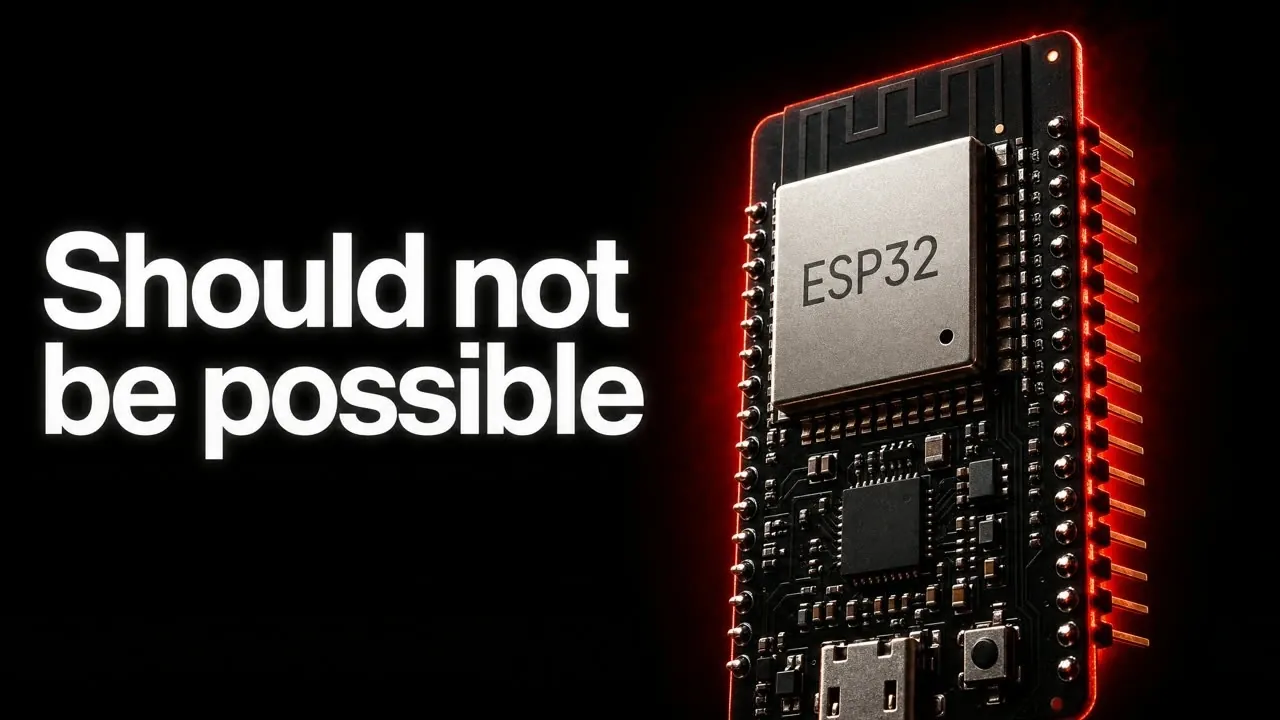

Understanding the Hardware
The ESP32 S3 microcontroller is a low-cost, versatile chip designed primarily for lightweight tasks. Its specifications include:
- 0.5 MB of fast SRAM, used for high-speed operations.
- 8 MB of slower PSRAM, providing additional memory for less time-sensitive tasks.
- 16 MB of flash storage, used for storing the compressed language model and other essential data.
Originally intended for applications like wireless connectivity, sensor management and basic automation, the ESP32 S3 is not designed for computationally intensive tasks. Despite these limitations, engineers have successfully adapted it to run a 28.9 million parameter language model locally, showcasing the chip’s untapped potential when paired with innovative software and optimization techniques.
How the Language Model Was Implemented
To enable the ESP32 S3 to run a language model, engineers had to overcome significant hardware constraints by employing a series of optimizations:
- Parameter compression: The model’s parameters were compressed to 4 bits per parameter, reducing its size to 14.9 MB to fit within the available flash storage.
- Memory allocation: Lookup tables, which store static reference data, were placed in the slower PSRAM to free up faster memory for critical operations.
- Efficient execution: Key logic was loaded into the faster SRAM during runtime to maximize processing efficiency and minimize delays.
These adjustments allowed the microcontroller to process the language model effectively, despite its limited resources. The result is a functional system capable of generating simple outputs, such as short stories, within the constraints of the hardware.
Gain further expertise in ESP32 by checking out these recommendations.
- Optimize ESP32 Battery Life Using 10 Lesser-Known Features
- Arduino Nano ESP32 handheld console with round color display
- T-Display AMOLED Touch ESP32 board binary converter project
- Super Tiny RP2040/ESP32 Board Display for IoT and DIY Projects
- Loud ESP ESP32 audio development platform
- Tiny Holo Cubic display features a 1.3-inch TFT IPS and ESP32 microcontroller
- LilyGo T Watch Keyboard C3 mini computer kit
- Track Room Occupancy Without Cameras Using ESP32 Wi-Fi Drops
- New CodeCell C6 IoT ESP32 Board : Same Price, Improved Low-Power Design
- DIY 3D Printer Emission Monitor Helps Improve Indoor Air Quality
Optimizing Performance
Running a language model on a resource-constrained device like the ESP32 S3 required advanced techniques to optimize performance and manage memory effectively:
- Memory management: Engineers implemented strategies to minimize delays caused by accessing slower storage, making sure smoother operation.
- Per-layer embeddings: Inspired by Google’s Gemma models, this technique optimized memory usage at each layer of the language model, allowing efficient processing without exceeding the hardware’s limits.
These optimizations allowed the system to achieve a processing speed of 9.5 tokens per second. While this performance is modest compared to more powerful hardware, it is sufficient for generating simple outputs, such as children’s stories, demonstrating the feasibility of running AI models on low-cost devices.
Dataset and Training Approach
The language model was trained using a specialized dataset called “TinyStories.” This synthetic dataset was specifically designed for this application and consists of short, simple children’s stories with a constrained vocabulary and limited complexity. By focusing on a narrow domain, the computational demands of the model were significantly reduced, making it feasible to run on the ESP32 S3.
This approach highlights the importance of tailoring datasets to the capabilities of the hardware, making sure that the model remains functional within its constraints while still delivering meaningful outputs.
Software Engineering Behind the Project
The software powering this innovative setup is llama2.c, a lightweight inference engine written in C. Unlike traditional machine learning frameworks, which are often resource-intensive, llama2.c is designed specifically for efficiency on constrained hardware. By eliminating unnecessary overhead and focusing on essential functionality, the software maximizes the performance of the ESP32 S3.
This project underscores the critical role of software engineering in allowing AI applications on low-cost devices. By aligning the software’s design with the hardware’s limitations, engineers were able to achieve a balance between functionality and efficiency, pushing the boundaries of what is possible with minimal resources.
Challenges and Limitations
Despite its success, the project faces several inherent challenges that limit its broader applicability:
- Shared memory usage: The ESP32 S3’s memory is shared among various functions, such as wireless communication and sensor integration, leaving limited resources for running the language model.
- Restricted capabilities: The language model is limited to generating simple outputs, such as short stories and is unsuitable for more complex tasks or applications requiring higher computational power.
These limitations highlight the trade-offs involved in running AI models on low-cost, resource-constrained hardware. While the project demonstrates impressive engineering, its practical use is confined to specific, narrowly defined applications.
Broader Implications
This achievement illustrates the potential for deploying AI models on inexpensive hardware, opening up new possibilities for embedded AI applications in cost-sensitive environments. For instance, such systems could be used in educational tools, low-power IoT devices, or other scenarios where affordability and simplicity are key considerations.
However, the project also underscores the challenges of balancing hardware limitations with model functionality. The trade-offs between cost, performance and capability will continue to shape the development of AI systems for resource-constrained environments. While this project serves as a proof of concept, it also highlights the complexities involved in bringing AI to devices with minimal resources, paving the way for future innovations in this space.
Media Credit: The Stack
