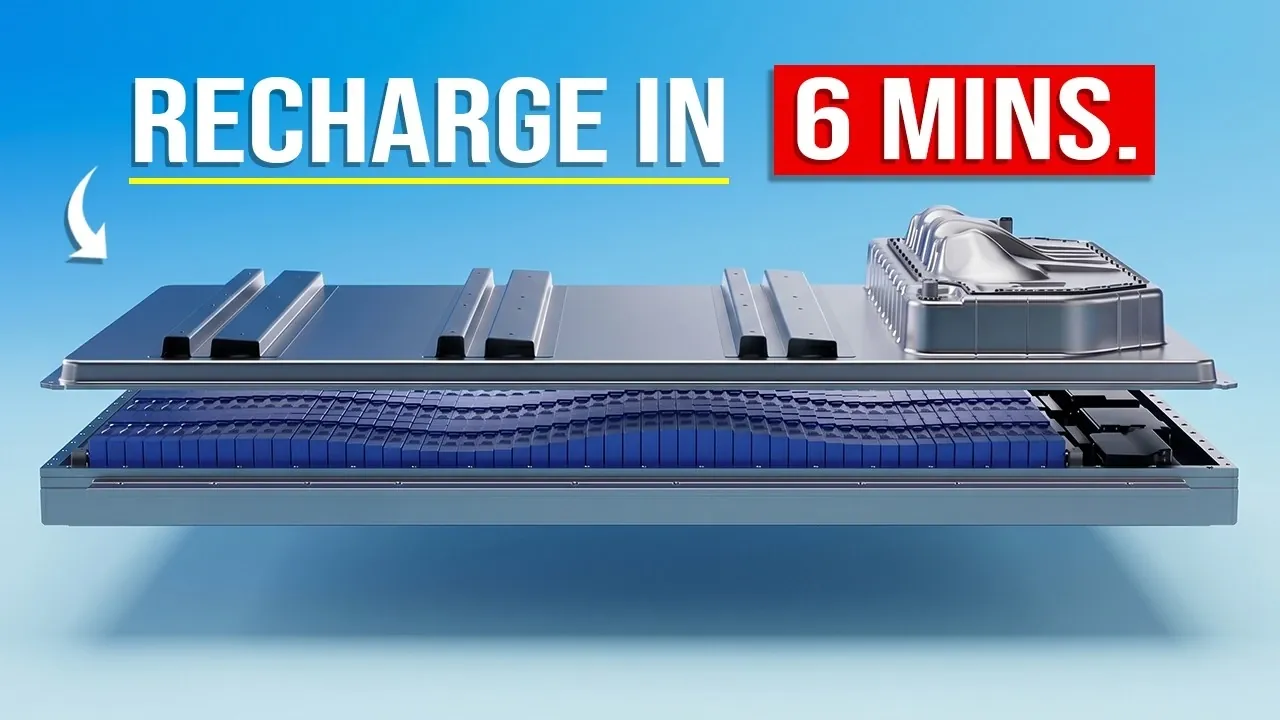

CATL’s Shenzhing Version 3 battery has set a remarkable standard in the electric vehicle (EV) industry by achieving an unprecedented combination of speed and durability. According to Ziroth, this battery allows EVs to gain a 100 km range in just 30 seconds and reach a full charge in six minutes, addressing one of the most significant barriers to EV adoption: charging time. Beyond speed, the battery retains 90% of its capacity after 1,000 fast-charging cycles, showcasing a design that prioritizes both efficiency and longevity. These advancements highlight CATL’s focus on solving key engineering challenges, such as heat generation and internal resistance, without compromising performance.
Explore how CATL optimized the battery’s internal resistance to enhance charging efficiency, including innovations like shorter cell lengths and improved electrode materials. Gain insight into the advanced heat management system that ensures consistent performance, even in extreme conditions as low as -30°C. Additionally, understand how CATL’s approach to durability and material science positions the Shenzhing Version 3 as a sustainable solution for the future of EV technology. This overview offers a detailed breakdown of the engineering principles behind one of the most advanced batteries on the market today.
Transforming Fast-Charging Performance
TL;DR Key Takeaways :
- The Shenzhing Version 3 battery enables EVs to achieve a 100 km range in just 30 seconds and a full charge in six minutes, setting a new standard for fast charging.
- It maintains 90% capacity even after 1,000 fast-charging cycles, combining speed with exceptional durability for long-term reliability.
- Advanced heat management, including dual cooling plates and a preheating mechanism, ensures consistent performance in diverse environmental conditions, even at -30°C.
- Innovations such as reduced internal resistance, optimized graphite anodes and enhanced SEI layers improve charging efficiency and minimize degradation.
- CATL is exploring future advancements like condensed matter batteries with energy densities up to 350 Wh/kg, aiming to further transform EV technology and enable ranges exceeding 1,000 miles.
The Shenzhing Version 3 battery redefines the concept of fast charging, drastically reducing the time EV owners spend waiting to recharge. With the ability to deliver a 100 km range in just 30 seconds and achieve a full charge in six minutes, it sets a new standard for long-distance travel convenience. This remarkable performance does not come at the expense of the battery’s lifespan. Rigorous testing confirms its ability to maintain 90% capacity even after 1,000 high-speed charging cycles. By combining speed with durability, CATL has demonstrated its engineering expertise and positioned the Shenzhing Version 3 as a pivotal solution for EV users seeking efficiency and reliability.
Innovative Heat Management for Consistent Performance
Effective heat management is a cornerstone of the Shenzhing Version 3’s design, making sure reliable performance during fast charging. Heat generation, a common issue during rapid charging, is minimized by reducing internal resistance, which is a primary contributor to thermal buildup. The battery incorporates an advanced cooling system featuring dual cooling plates positioned on both the top and bottom of the cells. This design ensures even temperature distribution and prevents hotspots that could compromise performance. Additionally, a preheating mechanism enables efficient charging in extreme cold, allowing the battery to function reliably even at temperatures as low as -30°C. These innovations ensure consistent performance across diverse environmental conditions, enhancing the battery’s practicality for global use.
Find more information on energy by browsing our extensive range of articles, guides and tutorials.
- Z Pinch Fusion Costs Drop, Compact Reactor Skips Magnets & Lasers
- Useful Energy vs Primary Energy: Clearer Way to Measure Electrification Gains
- Kesterite Solar Cells vs Perovskite: Efficiency and Stability
- Solar Energy S 40,000 mAh retractable solar panel and power bank
- Best Battery Life Smartphones of 2025: OnePlus 15 Leads the Way
- Airnergy Havester Battery Charges From Thin Air
- Solid-State Battery Energy Density: Donut Labs Scrutiny
- EnergyLink’s Magnetic Wireless Charger Apple Watch Band
- Donut Lab Solid State Battery or Pseudo-Capacitor, Experts Weigh In
- Donut Labs Solid-State Battery Tests : VTT Data & Doubts
Reducing Internal Resistance for Enhanced Efficiency
Internal resistance is a critical factor that affects charging speed and efficiency. CATL addressed this challenge by implementing several key advancements. The battery cell length was shortened, reducing the distance electrons must travel and improving overall conductivity. The solid electrolyte interface (SEI) layer was enhanced with engineered additives, facilitating smoother lithium-ion transport and minimizing degradation. Additionally, the graphite anode was optimized with expanded layers, allowing lithium ions to insert more efficiently. These combined improvements significantly reduce resistance, allowing faster charging without compromising the battery’s efficiency or longevity.
Durability Through Advanced Design
Durability is a defining feature of the Shenzhing Version 3 battery, achieved through meticulous design and material innovation. The enhanced SEI layer prevents breakdown during repeated charging cycles, while reduced heat generation slows the aging process and minimizes capacity loss over time. These measures ensure that the battery remains reliable and efficient, even under the demanding conditions of fast charging. By prioritizing longevity, CATL has created a battery that aligns with the broader goals of sustainability and long-term usability in EV technology.
Energy Density and Future Innovations
While the Shenzhing Version 3 battery matches the energy density of previous lithium iron phosphate (LFP) fast-charging batteries, its performance represents a significant leap forward. By addressing consumer concerns about charging times, this battery could accelerate the adoption of EVs on a global scale. Looking ahead, CATL is actively exploring new battery chemistries, such as condensed matter batteries, which promise energy densities of up to 350 Wh/kg and ranges exceeding 1,000 miles. These advancements could further transform the EV market, making long-range electric travel more practical and accessible for a broader audience.
Engineering Excellence: Innovation Without Compromise
The Shenzhing Version 3 battery embodies CATL’s commitment to overcoming the traditional trade-offs between charging speed and durability. This achievement is the result of extensive material science research and a focused engineering approach. By addressing challenges such as heat generation, internal resistance and degradation, CATL has demonstrated that the limitations of fast-charging batteries can be transformed into opportunities for innovation. This philosophy underscores the company’s leadership in advancing EV technology and its dedication to meeting the evolving needs of modern transportation.
A Milestone in EV Battery Technology
The Shenzhing Version 3 battery represents a pivotal advancement in EV technology, proving that fast charging and durability can coexist without compromise. Through innovations in heat management, resistance reduction and material science, CATL has delivered a solution that meets the demands of contemporary EV users. As the industry continues to evolve, this breakthrough sets a new benchmark for what is achievable, paving the way for a future where EVs are not only practical but also the preferred choice for sustainable transportation.
