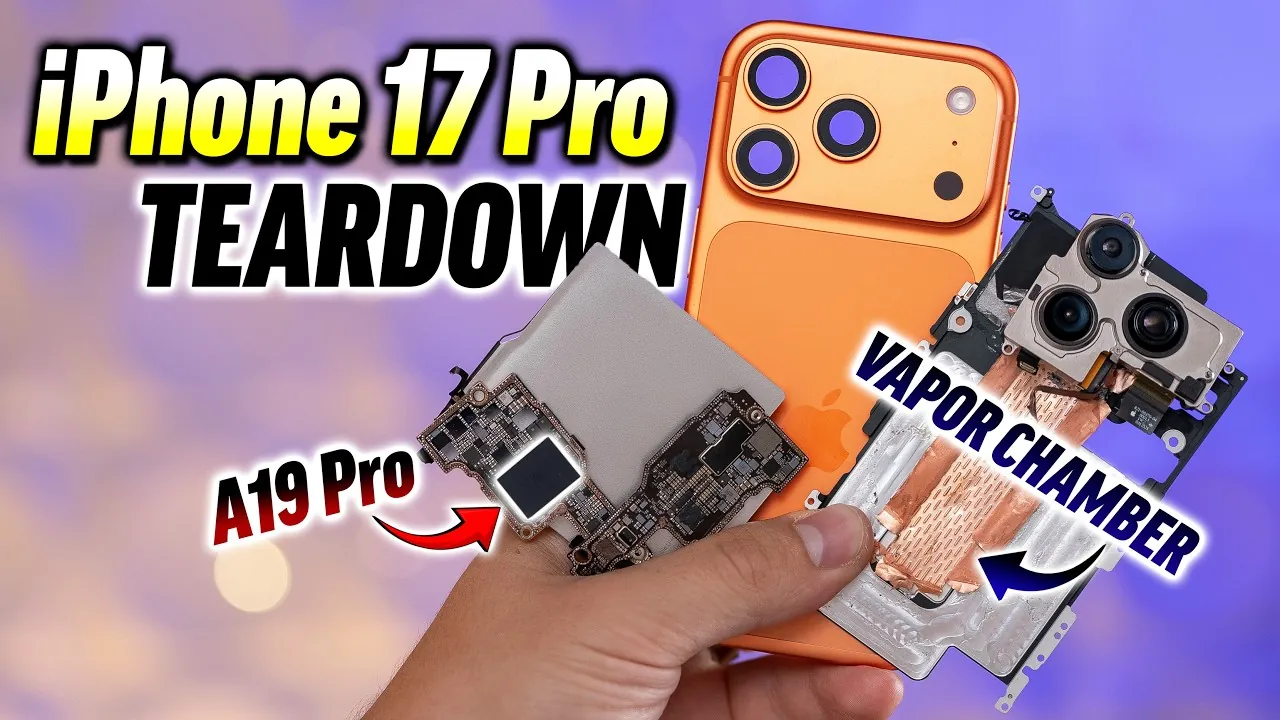

The iPhone 17 Pro introduces a range of engineering advancements that distinguish it from its predecessor, the iPhone 16 Pro. A detailed teardown reveals significant improvements in design, thermal management, battery capacity, and internal organization. These updates reflect deliberate efforts to enhance performance, efficiency, and overall user experience, showcasing Apple’s commitment to innovation and functionality. The video below from Max Tech gives us more details.
Aluminum Unibody: Enhanced Heat Dissipation and Durability
One of the most notable upgrades is the transition from a titanium frame to an aluminum unibody design. Aluminum is renowned for its exceptional thermal conductivity, which is approximately 150 times better than glass. This material choice significantly improves heat dissipation, making sure the device remains cooler during intensive tasks. Additionally, the unibody structure contributes to a lighter and more durable build, enhancing both portability and longevity. The integration of redesigned antenna bands into the aluminum frame further improves connectivity while maintaining structural integrity, demonstrating a seamless blend of form and function.
Battery Capacity: Substantial Increase for Longer Usage
The iPhone 17 Pro features a noteworthy battery upgrade, increasing capacity from 3,582mAh in the iPhone 16 Pro to 4,252mAh. This 18.7% improvement directly translates to extended usage times, reducing the frequency of recharging for users. Apple achieved this enhancement by optimizing internal space through the use of a dual-stacked logic board, which allows for a larger battery without compromising the device’s slim profile. This design innovation ensures that users benefit from both improved battery life and a sleek, modern aesthetic.
Advanced Cooling: Maintaining Consistent Performance
Thermal management in the iPhone 17 Pro has been significantly upgraded with the introduction of a vapor chamber cooling system. This advanced technology works in conjunction with graphite and copper heat transfer materials to efficiently dissipate heat during demanding activities such as gaming or video editing. The vapor chamber, paired with the aluminum unibody, prevents thermal throttling, making sure that the device maintains consistent performance even under heavy workloads. These enhancements highlight Apple’s focus on delivering a reliable and high-performance user experience.
A19 Pro Chip: Innovative 3nm Technology
At the heart of the iPhone 17 Pro lies the A19 Pro chip, built using TSMC’s advanced 3nm process. This innovative chip features increased transistor density, resulting in improved performance and energy efficiency. Enhanced neural accelerators and additional cache enable faster AI computations and smoother multitasking, making the device more capable of handling complex tasks. The chip’s integration with the dual-stacked logic board not only optimizes thermal performance but also maximizes internal space utilization, reflecting a meticulous approach to engineering.
Camera Upgrades: Larger Sensors for Superior Photography
The camera system in the iPhone 17 Pro has been significantly enhanced, featuring a new 48MP telephoto sensor with 4x optical zoom. This sensor is 56% larger than its predecessor, allowing it to capture more light and deliver improved low-light photography. To accommodate the larger sensor without increasing the device’s thickness, Apple redesigned the camera plateau and minimized the size of Face ID components. Additionally, a flipped selfie camera orientation contributes to better internal space management, making sure that the device remains compact while offering superior photographic capabilities.
Audio Enhancements: Immersive Sound Quality
The iPhone 17 Pro delivers an improved audio experience through a larger bottom speaker, which produces richer and more immersive sound. The top speaker has been redesigned with a smaller footprint, allowing better internal organization without compromising audio clarity. These upgrades enhance the overall multimedia experience, making the device ideal for activities such as music playback, video streaming, and gaming.
5G Connectivity: Faster Speeds and Improved Reliability
Equipped with the Qualcomm X80 modem and SDR875 RF chip, the iPhone 17 Pro offers faster and more reliable 5G connectivity. Redesigned antenna bands, now integrated into the aluminum body, improve signal reception and reduce interference. These advancements ensure seamless connectivity, even in areas with challenging network conditions, providing users with a dependable and high-speed internet experience.
MagSafe: Faster and More Efficient Charging
MagSafe technology has been upgraded to support faster charging while improving heat management. The use of graphite and copper materials in the charging system enhances heat dissipation, making sure safe and efficient operation. These improvements make charging more convenient and reliable, catering to the needs of users who rely on quick and efficient power replenishment.
Engineering Innovations: Optimizing Space and Performance
Apple’s engineering advancements extend beyond individual components to the overall internal design of the iPhone 17 Pro. The dual-stacked logic board not only saves space but also enhances thermal efficiency, allowing for better heat management during intensive tasks. High-quality thermal paste ensures optimal heat transfer between components, further improving performance under load. These design choices reflect Apple’s dedication to creating a device that balances functionality, durability, and efficiency.
A Comprehensive Leap in Smartphone Design
The iPhone 17 Pro represents a significant step forward in smartphone engineering and design. From the aluminum unibody and advanced cooling systems to the A19 Pro chip and enhanced camera technology, every aspect of the device has been carefully crafted to deliver superior performance, efficiency, and user satisfaction. These innovations solidify the iPhone 17 Pro’s position as a leading device in the smartphone market, offering a compelling combination of power, durability, and innovative technology.
