The iPhone Air teardown and transparent back modification offer a unique perspective on the intricate engineering that defines Apple’s latest device. This process involves carefully disassembling the phone, removing the paint from its back glass, and reassembling it to ensure full functionality. The result is a transparent device that reveals the iPhone Air’s internal components, showcasing its sophisticated design while retaining critical features such as MagSafe charging and camera performance. The video below from Phone Repair Guru not only highlights the device’s internal craftsmanship but also underscores the precision required to maintain its functionality.
Design Challenges: Curved Glass and Enhanced Magnets
The iPhone Air’s design introduces several challenges for those attempting modifications, particularly due to its curved glass camera plateau. Unlike flat surfaces, the curvature complicates the paint removal process, requiring specialized tools and techniques to avoid damaging the glass. This unique design element reflects Apple’s commitment to aesthetics and innovation but adds a layer of complexity for customization enthusiasts.
Additionally, the iPhone Air features larger and thicker MagSafe magnets compared to previous models. These enhanced magnets improve wireless charging and accessory attachment but make disassembly and reassembly more intricate. The combination of curved glass and advanced magnetic components demonstrates Apple’s focus on both form and function, while also presenting significant hurdles for teardown and modification efforts.
Teardown Process: Precision in Every Step
Disassembling the iPhone Air requires a methodical approach to ensure that each component is safely removed without compromising the device’s integrity. Key elements such as the wireless charging coil, MagSafe magnets, thermal pad, flash, and rear microphone are secured using advanced adhesive technology. To loosen these bonds, heat and isopropyl alcohol are applied carefully, allowing the components to be detached without damage.
The use of precision tools is essential during this stage, as even minor errors can lead to irreparable damage. Each step of the teardown process demands a steady hand and meticulous attention to detail, making sure that the device can be reassembled seamlessly. This level of precision highlights the complexity of the iPhone Air’s internal design and the expertise required to modify it successfully.
Paint Removal: A Delicate and Labor-Intensive Task
One of the most challenging aspects of the transparent back mod is the paint removal process, particularly on the curved areas of the camera plateau. This task involves using heat and scraping tools to strip the paint layer by layer, requiring steady hands and a high degree of patience. The curved glass adds an extra layer of difficulty, as improper techniques can result in scratches or cracks.
Gallium, a material often used for metal removal, was tested during this stage but proved ineffective due to the specific materials used in the iPhone Air’s construction. This highlights the importance of selecting the right tools and methods for each step of the modification. The paint removal process is both time-consuming and delicate, underscoring the effort required to achieve a transparent aesthetic without compromising the device’s structural integrity.
Reassembly: Restoring Functionality with Precision
Once the paint is removed, the reassembly process begins, requiring exact alignment of all components to restore the device’s full functionality. Key elements such as the camera bump, flash, and MagSafe magnets must be positioned with precision to ensure optimal performance. The placement of the MagSafe magnets is particularly critical, as even slight misalignment can disrupt wireless charging capabilities or accessory compatibility.
Adhesive technology is reapplied during this stage to secure the components while maintaining the transparent back aesthetic. This step demands a careful balance between functionality and design, as any errors could compromise the device’s performance. The reassembly process highlights the importance of precision and expertise in achieving a successful modification.
Final Outcome: A Transparent Window into Innovation

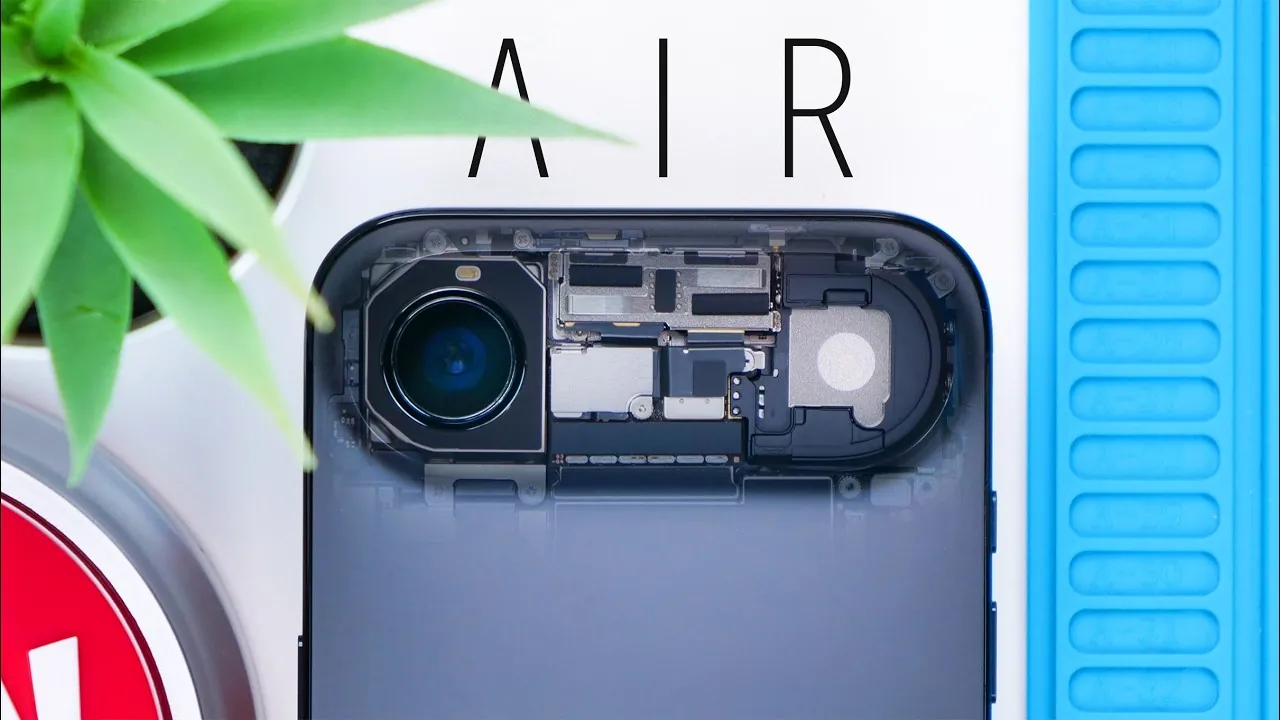

The completed transparent back mod transforms the iPhone Air into a one-of-a-kind device that reveals its internal components. Despite the challenges posed by its design, the modification successfully preserves all critical functionalities, including MagSafe charging, flash performance, and rear camera operation. The transparent back not only showcases the iPhone Air’s sophisticated engineering but also provides a deeper appreciation for the craftsmanship involved in its creation.
This modification demonstrates the potential for customization in modern smartphones, offering a unique blend of aesthetics and functionality. By revealing the intricate design of the iPhone Air, the transparent back mod serves as a testament to the device’s advanced engineering and the skill required to achieve such a transformation.
Key Takeaways
- The iPhone Air’s curved glass camera plateau and larger MagSafe magnets present significant challenges during the teardown and modification process.
- Heat, isopropyl alcohol, and precision tools are essential for safely loosening adhesives and removing components without damage.
- Paint removal from both flat and curved surfaces requires careful techniques, with gallium proving ineffective for this specific application.
- Reassembly demands meticulous alignment of components, particularly the MagSafe magnets, to maintain full functionality and performance.
- The final transparent back mod highlights the iPhone Air’s internal design while preserving all critical features, offering a unique perspective on Apple’s engineering.
This detailed exploration of the iPhone Air teardown and transparent back mod underscores the balance between design complexity and functionality. It provides valuable insights into the engineering behind one of Apple’s most advanced devices, offering a deeper understanding of the craftsmanship and precision required to achieve such a modification.
