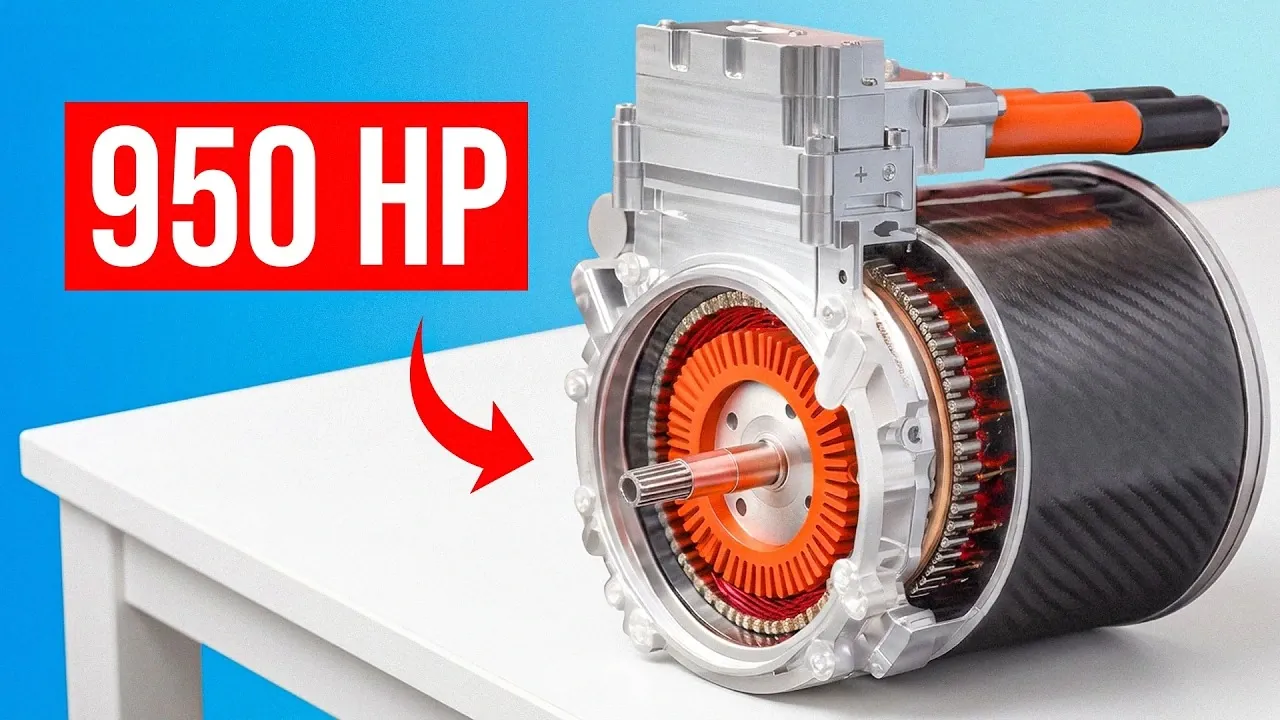

Helix has unveiled the SPX177, a compact electric motor capable of producing 950 horsepower while weighing only 28 kilograms. As highlighted by Ziroth, the motor employs a radial flux design to deliver high torque without adding unnecessary weight. Its cooling system, which integrates helical channels directly into the rotor, ensures consistent thermal management even during demanding operation. The SPX177 also achieves rotational speeds of up to 25,000 RPM, reflecting a focus on both performance and durability.
Discover how the SPX177’s six-phase electrical input improves power distribution and adds redundancy for enhanced reliability. Learn about the role of carbon fiber rotor sleeves in maintaining stability at high rotational speeds. Gain insight into how the motor’s compact design supports its use in hypercars and other high-performance applications.
What Sets the SPX177 Apart?
TL;DR Key Takeaways :
- The Helix SPX177 electric motor delivers an impressive 950 horsepower while weighing only 28 kilograms, setting a new benchmark for power density in high-performance electric motors.
- Its radial flux motor design maximizes torque in a compact structure, making it ideal for hypercars and applications where space and weight are critical.
- An innovative cooling system with helical channels and a coaxial rotary union ensures thermal stability and extends the motor’s lifespan under extreme conditions.
- The motor operates at speeds of up to 25,000 RPM, using carbon fiber rotor sleeves to maintain structural integrity and reliability at high speeds.
- A six-phase electrical input system enhances power efficiency, reliability and redundancy, making sure consistent performance even under demanding conditions.
The SPX177 distinguishes itself through its remarkable combination of power, efficiency and compactness. Its design incorporates several new features that elevate its performance to unprecedented levels:
- Radial flux motor design that maximizes torque while maintaining a compact structure.
- An innovative cooling system that ensures thermal stability even under extreme conditions.
- Capability to operate at 25,000 RPM, pushing the boundaries of high-speed performance.
- A six-phase electrical input system that enhances reliability and power efficiency.
These attributes collectively position the SPX177 as a leader in electric motor technology, particularly for applications requiring high performance and compact design.
Radial Flux Motor Design: Compact Yet Powerful
The SPX177 employs a radial flux motor design, a configuration where magnetic flux is aligned perpendicular to the axis of rotation to generate torque. While this design is often associated with larger motors, Helix has successfully miniaturized it without compromising performance. By integrating advanced materials and precision engineering, the SPX177 achieves an exceptional power density, delivering 950 horsepower in a lightweight and compact form factor. This makes it an ideal choice for hypercars and other high-performance vehicles where space and weight are critical considerations.
Here are more detailed guides and articles that you may find helpful on energy.
- How the Super Soaker Inventor Built a Heat Engine Without Moving Parts
- Best Phone Battery Life 2025: OnePlus 15, vivo X300 Pro, & iPhone 17 Pro Max
- The Battery BATTLE ROYALE – iPhone, Pixel, Galaxy, Xiaomi – Who Wins the Drain Test
- Apple Home vs Google Home: How iOS 27 Changes the Ecosystem
- Every Major Apple Announcement Leaked Ahead of WWDC 2026
- Apple Silicon AI Performance: Local Al on Apple Silicon Uses 7X Less RAM
- Apple Watch Ultra 4 Leak Reveals Redesign and Health Features
- The Biggest Hidden Features Inside Apple’s iOS 27 Update
- The MacBook Ultra Leak Just Revealed Apple’s Next Big Move
- What Makes the Seawater Battery a Breakthrough for Sustainability
Innovative Cooling System for Thermal Stability
Effective cooling is essential for high-power motors and the SPX177 excels in this area with its advanced thermal management system. Helix has incorporated helical cooling channels directly into the rotor, allowing coolant to flow beneath the magnets. This design ensures efficient heat dissipation, even during intense operation. A coaxial rotary union facilitates the smooth transfer of coolant between stationary and rotating components, maintaining consistent thermal regulation. This system not only enhances the motor’s performance but also extends its operational lifespan by minimizing thermal stress on critical components.
High-Speed Operation: Engineering Beyond Limits
The SPX177 is engineered to operate at speeds of up to 25,000 revolutions per minute (RPM), a feat that demands exceptional structural integrity. At such high speeds, centrifugal forces can pose significant challenges, including potential deformation of the rotor. To address this, Helix employs carbon fiber rotor sleeves to secure the magnets, making sure stability and reliability under extreme conditions. This meticulous attention to detail allows the SPX177 to meet the rigorous demands of hypercar performance while maintaining durability and efficiency.
Six-Phase Electrical Input: Reliability Redefined
The motor’s six-phase electrical input system is a standout feature that enhances both reliability and efficiency. By using two sets of three-phase windings, the SPX177 achieves superior power distribution and reduces heat generation. This design also introduces redundancy, allowing the motor to continue functioning even if one phase fails. For high-performance applications where reliability is paramount, this feature provides a significant advantage, making sure consistent operation under demanding conditions.
Applications and Industry Potential
The SPX177 is specifically designed for hypercars and high-performance vehicles, where its compact size, lightweight construction and immense power output are invaluable. Helix has already demonstrated its expertise in this field, with its motors featured in iconic vehicles such as the Aston Martin Valkyrie. The SPX177 builds upon this legacy, offering even greater capabilities. Beyond the automotive sector, the motor’s design principles have the potential to influence other industries that require high power density and efficiency, including aerospace, robotics and industrial machinery.
Advanced Materials and Thermal Management
To ensure optimal performance, Helix employs real-time thermal modeling to monitor and regulate the motor’s internal temperatures. This technology protects heat-sensitive components, such as the magnets, which are crucial to the motor’s functionality. Additionally, Helix is exploring alternative magnet materials that, while more heat-sensitive, offer advantages in terms of cost efficiency and supply chain stability. These advancements could pave the way for more sustainable and accessible electric motor technologies, broadening their appeal across various industries.
Shaping the Future of Electric Motors
The Helix SPX177 represents a significant advancement in electric motor design, combining a radial flux configuration, innovative cooling systems, high-speed operation and innovative materials. Its compact size and extraordinary power output make it a fantastic option for hypercars and other high-performance vehicles. Moreover, its design principles hold promise for broader applications, from aerospace to industrial machinery. By setting new standards for efficiency, performance and sustainability, the SPX177 offers a glimpse into the future of electric mobility and high-performance engineering.
