How Repairable is the OnePlus 15? A Detailed Teardown

The OnePlus 15 represents a significant achievement in modern smartphone design, combining advanced technology with a focus on durability and repairability. With a commendable repairability score of 8.5/10, this device strikes a balance between innovation and user accessibility. This detailed teardown provides more insights into its modular design, internal components, and thermal management system, offering insights into its construction and repair potential.

Watch this video on YouTube.

Design and Build: A Harmonious Blend of Strength and Elegance

The OnePlus 15’s design reflects a meticulous approach to balancing aesthetics and durability. Its exterior features a ceramic-grade coating created through micro-arc oxidation, providing a robust yet refined finish that resists scratches and wear. The fiberglass back plate, secured with adhesive, enhances structural integrity without adding unnecessary weight. These design choices result in a device that is both visually appealing and capable of withstanding the rigors of daily use.

Beyond its exterior, the OnePlus 15 incorporates subtle design elements that prioritize functionality. The placement of buttons, ports, and the SIM tray ensures ease of use, while the overall build quality underscores a commitment to longevity. This thoughtful approach to design makes the device not only stylish but also practical for everyday users.

Disassembly: A Step-by-Step Insight into Accessibility

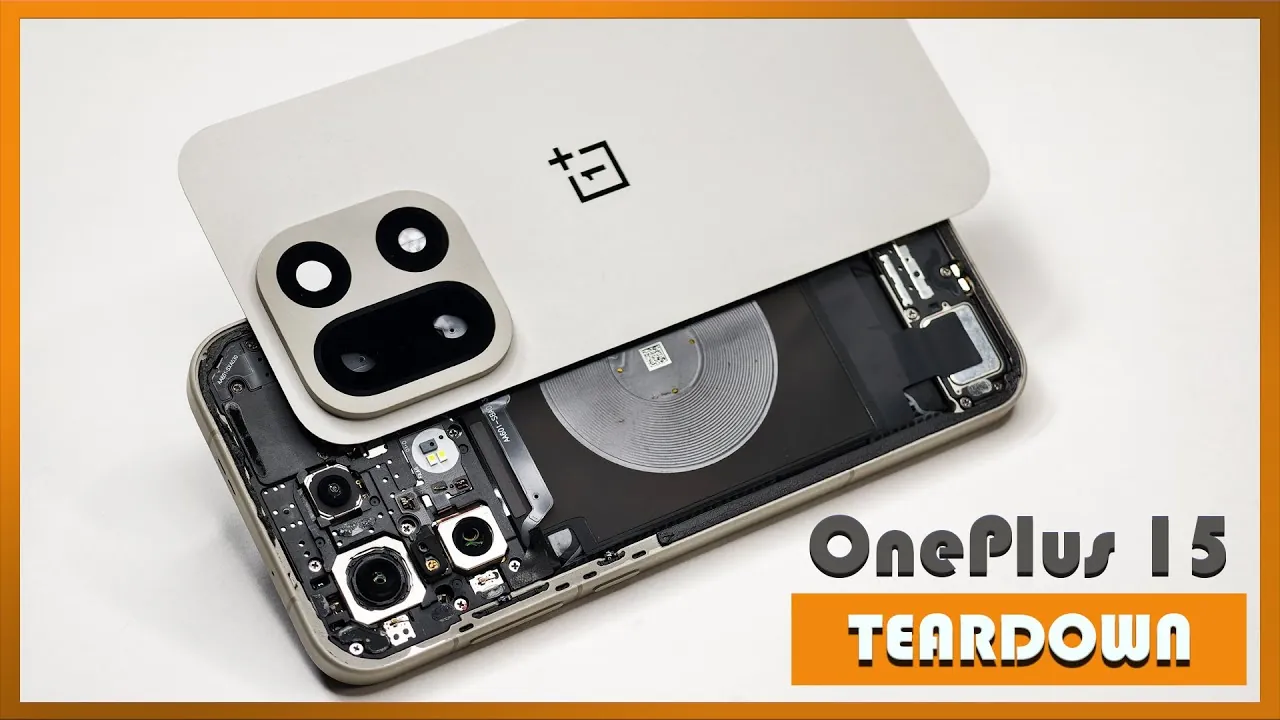

Gaining access to the OnePlus 15’s internal components begins with the removal of the SIM tray and back plate. The back plate is secured with adhesive, which can be loosened by applying heat. Once the adhesive is softened, the back plate and camera bezel can be carefully detached. Removing the screws reveals the phone’s internal layout, which is organized to assist straightforward disassembly.

The internal arrangement of components is a testament to the device’s repair-friendly design. Key elements, such as the battery and camera modules, are positioned for easy access, reducing the complexity of repairs. This level of organization benefits both professional technicians and DIY enthusiasts, making the OnePlus 15 a standout in terms of accessibility.

Internal Components: Advanced Technology Under the Hood

The OnePlus 15 is equipped with a range of sophisticated components that drive its performance and functionality. Each element is designed to work seamlessly, making sure a high-quality user experience. Key components include:

Battery: A 7,300 mAh dual-cell battery with 15% silicon content, delivering improved energy density and a longer lifespan.
Processor: The Snapdragon 8 Elite Gen 5, supported by thermal paste and copper tape for efficient heat dissipation.
Camera System: A triple-camera setup featuring a 50 MP main camera with optical image stabilization (OIS), ultra-wide and telephoto lenses, and a 32 MP front-facing camera.
Additional Features: A wireless charging coil, NFC antenna, and an IR blaster, enhancing the device’s versatility.
Thermal Management: A large vapor chamber that plays a critical role in maintaining optimal operating temperatures.

Each of these components is strategically placed to maximize performance while maintaining accessibility for repairs. The modular design ensures that individual parts can be replaced without extensive disassembly, further enhancing the device’s repairability.

Repairability Features: A User-Centric Approach

The OnePlus 15’s modular design is a key factor in its high repairability score. This approach simplifies the replacement of essential components, making the device more accessible to users and technicians alike. Notable repair-friendly features include:

Camera modules, battery, and buttons designed for straightforward replacement.
Rubber gaskets around connectors to protect against dust and moisture, enhancing durability.
Clear separation of flex cables and subboards, improving accessibility and reducing the risk of damage during repairs.

While adhesive is used in certain areas, it is applied thoughtfully to balance durability with ease of repair. This design philosophy reflects a commitment to creating a device that is both robust and user-friendly.

Thermal Management: Optimized for Performance

Effective thermal management is a cornerstone of the OnePlus 15’s design, making sure that the device maintains optimal performance even under demanding conditions. The dual-layered motherboard is equipped with thermal compound to enhance heat transfer, while graphite film and thermal pads are strategically placed over critical components. These measures work together to dissipate heat efficiently, preventing overheating during intensive tasks.

The large vapor chamber is another standout feature, playing a pivotal role in regulating the device’s temperature. By distributing heat evenly, the vapor chamber not only boosts performance but also extends the lifespan of internal components. This comprehensive approach to thermal management underscores the OnePlus 15’s focus on reliability and longevity.

Reassembly: Restoring the Device to Full Functionality

Reassembling the OnePlus 15 requires precision and attention to detail to ensure that all components are correctly reintegrated. The process involves reattaching the back plate, camera bezel, and other external elements, as well as applying new adhesive where necessary. This careful approach restores the device’s functionality while maintaining its structural integrity.

The modular design simplifies the reassembly process, reducing the risk of errors and making sure that the device operates as intended. This user-friendly approach to repair and maintenance highlights the OnePlus 15’s commitment to accessibility and practicality.

A Device That Balances Innovation and Accessibility

The OnePlus 15 stands out as a device that successfully combines advanced technology with a repair-friendly design. Its ceramic-grade coating, modular components, and sophisticated thermal management system make it a compelling choice for users who value both performance and accessibility. Whether you are a repair enthusiast or simply interested in the engineering behind modern smartphones, the OnePlus 15 offers a fascinating glimpse into the intricate balance of design, functionality, and repairability.
