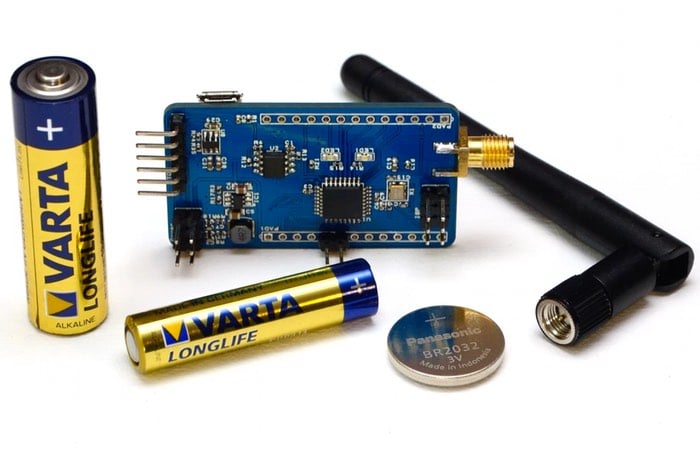

Makers, hobbyists and developers looking for a low powered Arduino compatible development board with built-in RF capable of running AVR projects for years using just a single AA battery.
Maybe interested in Whisper Node and new board that has been created by Talk² and this week launched over via the Kickstarter crowdfunding website looking to raise $15,000 AUD to go into production.
Watch the promotional video below to learn more about this tiny low powered Arduino development board which is now available to back with prices from just £6, $9 or €8. If you liked this you might also be interested in building an Arduino wind speed meter
A real ultra-low power board based on the popular AVR ATMega328p, the same chip used on the Arduino. Thanks to a highly efficient step-up switching regulator, this board can be powered with little as 0.9V. In another words, you can run it on a single Alkaline Cell, for very long periods, until the battery is totally dry.
If you prefer you can still plug a standard 5V power supply, like an USB charger, and take advantage of the dual 300mA LDO regulator. This give you much more flexibility while developing or running hunger projects and you still can use the battery as a backup.
As standard, this board comes with a RFM69 Sub-GHz RF module, giving you wireless connectivity out of the box! You’ll be able to talk with other Whisper Nodes or compatible boards like Moteino or Anarduino Miniwireless!
Dimensions and Connections
– Board size: 58.8 x 30.48 x 1.6mm – breadboard friendly
– GPIO: Two 13 Pin PCB Header to access all MCU Pins
– Standard 3×2 ISP Header
– 6 Pin FTDI Header
– 3×2 Header to access Vin, Vbat, and both 3.3V Rails
– Micro USB for External Power supply
– RF SMA Connection for external Antenna
Components
– MCU Atmel 8-bit AVR: ATMega328P-AU (32Kb Flash/2Kb RAM)
– 4Mbit SPI Flash: W25X40
– Sub-GHz RF Module: RFM69W @ 433MHz or 915MHz
– Step Up Switching Regulator: MCP16251/2
– Dual LDO Regulator: RT9011
– 16Mhz real Crystal – not the unreliable ceramic resonator
– Feedback LEDs
– External Antenna
Board Power
– Battery Power Supply: from 0.9V to 3.3V
– External Power Supply: from 3.3V to 5.5V (can use a 3.7V LiPo battery)
– Power Consumption: down to 20µA in Sleep mode from a 3V source
For more information on the new Whisper Node jump over to the Kickstarter website for details and to make pledge via the link below.
Source: Kickstarter
