The Raspberry Pi CM5 Development Kit provides a robust and adaptable platform for developers to explore the potential of the Compute Module 5 (CM5) priced at £125 or. $130. Designed with a focus on performance and modularity, the kit includes essential components such as the CM5 module, a cooling solution, a reliable power supply, and an IO board. With upgraded hardware and enhanced connectivity, it is tailored to meet the demands of modern development and testing environments. This kit is particularly suited for those seeking a versatile solution for prototyping, testing, and deploying custom applications.
With 4GB of RAM, 32GB of eMMC storage, and a host of thoughtful design elements, it’s built to handle demanding applications while remaining flexible enough for customization. But what really sets this kit apart is its focus on usability, with features like improved cooling solutions and a robust IO board that make development not just possible, but enjoyable.
Raspberry Pi CM5 Development Kit
TL;DR Key Takeaways :
- The Raspberry Pi CM5 Development Kit features the Compute Module 5 (CM5) with 4GB RAM, 32GB eMMC storage, and anti-static protection, offering a modular and high-performance platform for developers.
- Enhanced thermal management includes a redesigned cooling solution with thermal pads, though compatibility issues between the fan and case may affect performance.
- A reliable 27W USB-C power supply with 5V/5A output and USB-C Power Delivery ensures stable performance during demanding tasks.
- Comprehensive connectivity options include dual HDMI ports, USB 3.0, 1GB Ethernet, GPIO header, M.2 slot, and an external antenna for diverse applications.
- Developers benefit from extensive online documentation and resources, though setup requires manual preparation of the operating system and additional components.
Compute Module 5 (CM5): The Core Component
At the heart of the kit lies the Compute Module 5 (CM5), which is equipped with 4GB of RAM and 32GB of eMMC storage, making sure ample memory and storage for a wide range of applications. The module is coated with an anti-static layer, enhancing its durability and making sure safe handling during setup and use. Wireless chips are mounted on a riser, allowing for seamless integration into custom designs. Additionally, the module features clear markings for memory and storage configurations, simplifying the identification process and allowing developers to quickly verify specifications.

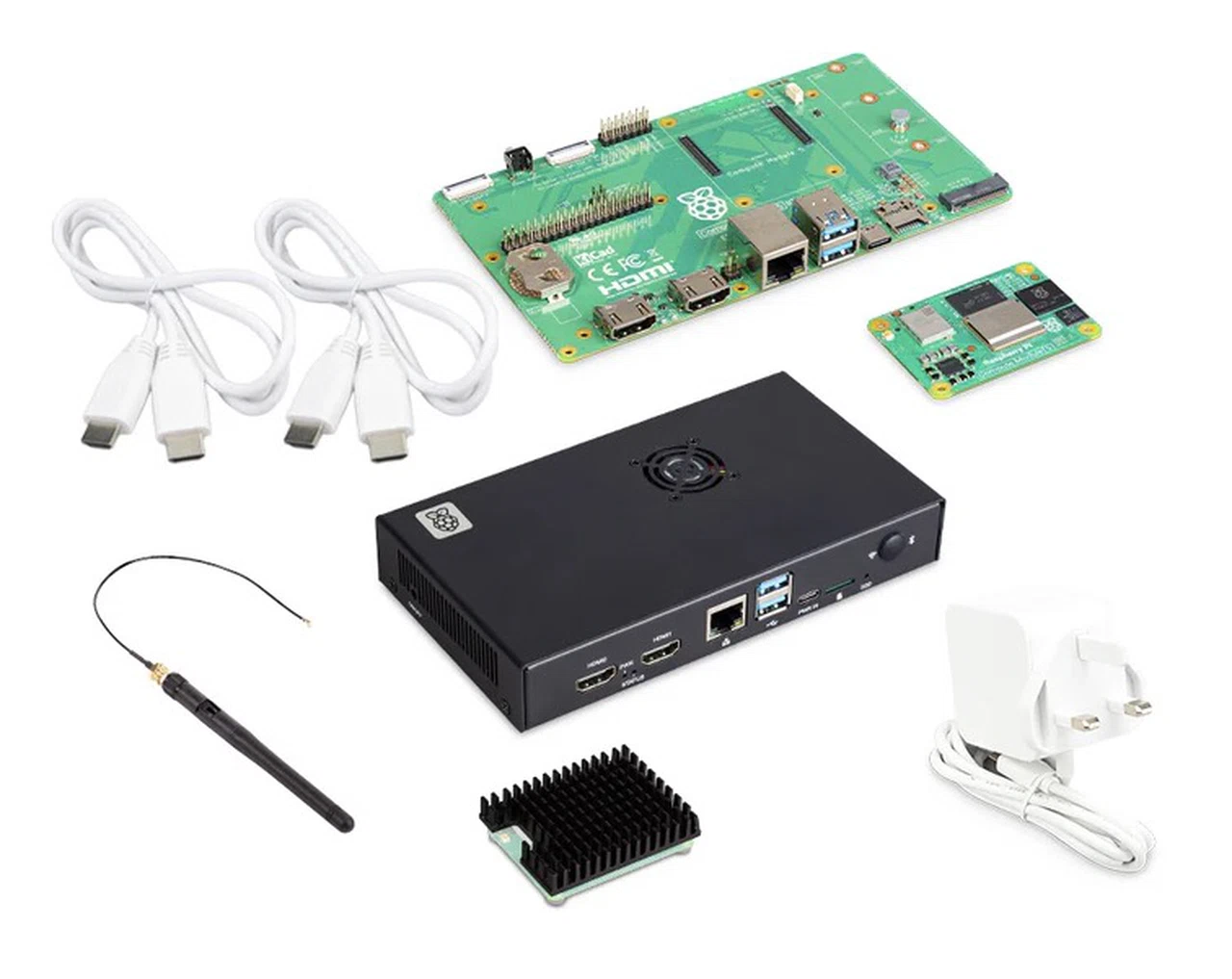

CM5 Dev Kit Contents :
- Compute Module 5, with wireless, 4GB RAM, 32GB eMMC Storage
- Compute Module 5 Metal Case
- Compute Module 5 IO Board
- Compute Module 5 Passive Cooler
- Raspberry Pi 27W USB Type-C PD Power Supply (UK plug)
- Antenna Kit
- Standard HDMI Cable x2
- USB-A to USB-C Cable
The CM5 is designed to cater to diverse use cases, from IoT applications to embedded systems. Its compact form factor and modular design make it an ideal choice for developers looking to create scalable and efficient solutions.
Enhanced Thermal Management
Effective thermal management is a critical aspect of any computing module, and the CM5 Development Kit addresses this with a thoughtfully redesigned cooling solution. The included Raspberry Pi cooler, featuring thermal pads, efficiently dissipates heat from key components such as the Wi-Fi module and the power management IC (PMIC). This ensures stable performance even during intensive workloads.
However, developers should note potential compatibility challenges when using the fan and case together. These issues may slightly impact cooling efficiency, particularly in high-performance scenarios. Despite this, the cooling system is well-suited for most development environments, making sure the CM5 operates within safe temperature ranges.
Pi CM5 Dev Kit Unboxing
Find more information on Compute Module 5 (CM5) and more by browsing our extensive range of articles, guides and tutorials.
- How to Use the Raspberry Pi Compute Module 5 for Projects
- Raspberry Pi Compute Module 5 Features and Release Date
- Geeky Gadgets – The Latest Technology News
- Raspberry Pi Computer Module 4 (CM4) clones and alternatives
- DigiPort The Ultimate Pocket PC You Can Take Anywhere
- Rabbit R1 pocket AI computer and virtual assistant $199
- 11 Essential Google Keep Tips for Better Digital Organization
- Learn about machine learning and the fundamentals of AI
Reliable Power Supply for Demanding Applications
The kit includes a 27W USB-C power supply capable of delivering a consistent 5V/5A output, making sure stable performance under heavy workloads. This power supply is equipped with USB-C Power Delivery (PD), a feature that enhances compatibility with the Raspberry Pi 5 and other devices requiring high power delivery. This reliable energy source is particularly valuable for developers working on resource-intensive tasks, as it minimizes the risk of power interruptions.
The inclusion of a high-capacity power supply underscores the kit’s focus on providing a seamless development experience. Whether you’re running complex simulations or testing hardware integrations, the power supply ensures your setup remains stable and efficient.
Comprehensive Connectivity Features
The CM5 Development Kit is designed to support a wide range of applications through its extensive connectivity options. Key components included in the kit are:
- Two full-size HDMI cables for high-quality video output
- A USB-A to USB-C cable for programming and data transfer
- An external antenna to enhance wireless signal strength and reliability
These connectivity features ensure reliable data and video transmission, even in environments prone to interference. The external antenna, in particular, is a valuable addition for developers working on wireless applications, as it improves signal strength and stability. This flexibility allows the CM5 to be seamlessly integrated into a variety of projects, from multimedia systems to IoT networks.
IO Board: Unlocking Expanded Functionality
The IO board included in the kit is a key component that enhances the CM5’s functionality. It is designed to provide developers with the tools needed to maximize the module’s potential. Key features of the IO board include:
- Dual HDMI ports for multi-display setups
- USB 3.0 for high-speed data transfer
- 1GB Ethernet for reliable network connectivity
- A GPIO header for hardware interfacing and prototyping
- An M.2 slot for expandable storage options
- An RTC battery slot for real-time clock support
The board also includes power and status LEDs, providing visual indicators for monitoring activity. Its updated design features a USB-C power input and a revised mounting hole layout, improving usability and compatibility with various enclosures. While the included fan may produce varying noise levels during operation, this is a minor issue that does not significantly impact the board’s overall functionality.
Setup and Customization
Setting up the CM5 requires flashing an operating system using Raspberry Pi’s rpi-boot tools. The kit provides detailed instructions for disabling eMMC boot during the initial setup, making sure a smooth configuration process. However, developers should be aware that the kit does not include a pre-flashed OS or a jumper for setup. This approach offers flexibility, allowing you to customize the module to meet your specific requirements.
The absence of pre-configured components encourages developers to tailor the setup process to their needs, making the CM5 an excellent choice for those who value customization and control. Whether you’re building a prototype or deploying a production-ready system, the setup process is straightforward and well-documented.
Design and Usability Insights
The IO board’s case is constructed from durable materials and features the Raspberry Pi logo, reflecting the brand’s commitment to quality. However, some design quirks, such as the orientation of the logo and the fan’s behavior during shutdown, may require attention. These minor issues do not detract from the overall usability of the kit, which is designed to support efficient development and testing.
The thoughtful design of the kit ensures that developers can focus on their projects without being hindered by hardware limitations. From the robust cooling solution to the versatile IO board, every component is engineered to enhance the development experience.
Developer Support and Resources
To assist developers in fully using the CM5’s capabilities, the kit provides access to a wealth of online documentation and guides. These resources include step-by-step instructions for setup and usage, making sure a smooth development process. Whether you’re exploring new applications or customizing the module for specific use cases, these materials are invaluable for streamlining your workflow.
The availability of comprehensive support resources highlights the Raspberry Pi Foundation’s commitment to fostering innovation and empowering developers. By providing clear and accessible documentation, the kit enables users to unlock the full potential of the CM5.
The Raspberry Pi CM5 Development Kit is a versatile and powerful tool for developers seeking to harness the capabilities of the Compute Module 5. With its upgraded hardware, extensive connectivity options, and robust design, the kit provides a solid foundation for innovation. While minor design and setup challenges exist, these are outweighed by the kit’s numerous strengths, making it an excellent choice for creating and testing advanced computing solutions.
