Have you ever wondered what’s happening in the invisible world of radio waves all around us? From the music playing on your favorite FM station to the Wi-Fi signals powering your internet connection, the radio frequency spectrum is a fascinating, often overlooked frontier. But what if you could tap into this hidden world, not just as a passive observer, but as an active participant? That’s where the CaribouLite, a software-defined radio (SDR) add-on for the Raspberry Pi, comes in.
In this overview, Jeff Geerling reveals how the CaribouLite transforms your Raspberry Pi into a powerful SDR platform, capable of tuning into everything from FM radio to Wi-Fi bands. Walking you through the setup process, sharing practical tips, and exploring real-world applications that make SDR both accessible and exciting. If you’ve ever felt intimidated by the technical side of radio communications, don’t worry—Jeff breaks it down step by step.
Raspberry Pi SDR with a CaribouLite
By combining the compact Raspberry Pi with the adaptable CaribouLite, you can both send and receive signals across a wide range of frequencies. This pairing creates opportunities for diverse radio communication experiments, such as tuning into FM stations, monitoring weather signals, or analyzing Wi-Fi bands.
TL;DR Key Takeaways :
- The CaribouLite is a compact SDR add-on for Raspberry Pi, supporting frequencies from 30 MHz to 6 GHz, allowing diverse applications like FM radio reception, weather monitoring, and Wi-Fi analysis.
- It uses the Raspberry Pi’s secondary memory interface (SMI) for efficient data transfer, making sure a streamlined and responsive SDR experience.
- Setting up the CaribouLite requires a compatible Raspberry Pi model (e.g., Raspberry Pi 4), driver installation, and tools like SoapySDR and GQRX for signal visualization.
- Practical applications include tuning into FM stations, monitoring weather signals, analyzing Wi-Fi bands, and decoding digital signals, with advanced options available through software like GNU Radio.
- Optimizing performance involves careful hardware configuration, stable connectivity (e.g., wired Ethernet), and experimenting with antennas, while addressing challenges like power management and signal routing.
What is the CaribouLite SDR Add-On?

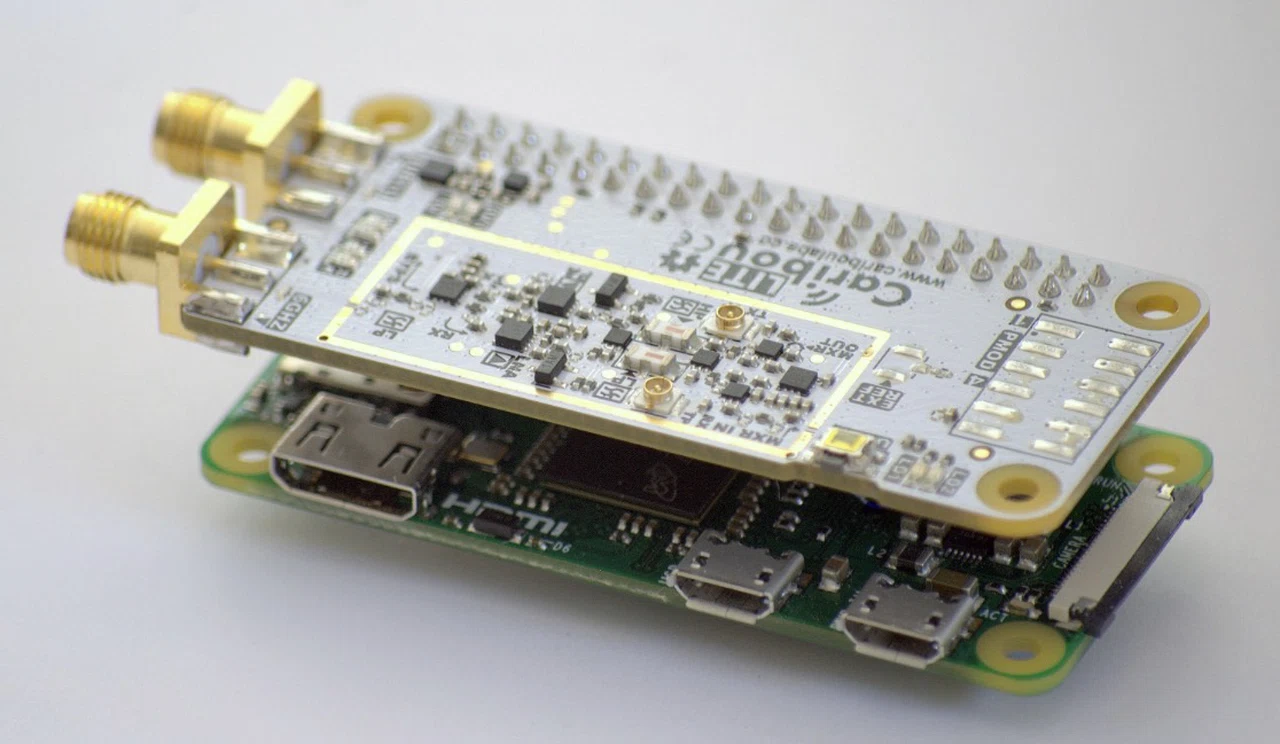

The CaribouLite is a compact and efficient SDR module specifically designed for Raspberry Pi devices equipped with a 40-pin GPIO header. It supports frequencies ranging from 30 MHz to 6 GHz, making it suitable for a variety of applications, including FM radio reception, weather signal monitoring, and Wi-Fi band exploration. Unlike traditional SDR setups that rely on external hardware, the CaribouLite uses the Raspberry Pi’s secondary memory interface (SMI) for high-speed data transfer. This integration ensures seamless communication between the SDR hardware and the Raspberry Pi, providing a responsive and streamlined user experience.
The module’s compact design and compatibility with the Raspberry Pi make it an excellent choice for hobbyists and professionals alike. Its ability to handle a broad frequency range allows users to experiment with different aspects of radio communication, from decoding digital signals to exploring advanced protocols. By using the Raspberry Pi’s processing power, the CaribouLite offers a cost-effective and portable solution for SDR enthusiasts.
How to Set Up the CaribouLite
Setting up the CaribouLite requires a compatible Raspberry Pi model, such as the Raspberry Pi 4, as newer models like the Raspberry Pi 5 lack the necessary GPIO pin configuration. The setup process involves several key steps:
- Installing the required drivers and software dependencies to enable communication with the SDR hardware.
- Compiling software and applying patches to ensure compatibility with your Raspberry Pi’s operating system.
- Using tools like SoapySDR and GQRX to stream and visualize radio signals effectively.
While the process may seem technical, it is manageable for users familiar with basic Linux commands and concepts. Numerous online guides provide step-by-step instructions to simplify the setup. Once configured, these tools allow you to interact with the CaribouLite hardware and begin exploring the radio frequency spectrum. For those new to SDR, starting with pre-configured software packages can help ease the learning curve.
Here is a selection of other guides from our extensive library of content you may find of interest on Software-Defined Radio (SDR).
- LimeSDR open source software-defined radio
- KiwiSDR BeagleBone Black Radio With Multi-User Web Interface
- LimeSDR XTRX high-performance SDR in a Mini PCIe form factor
- LimeSDR XTRX SDR in a Mini PCIe form factor
- Raspberry Pi 400 mini PC converted into a hacker cyberdeck
- Open Canvas vs. OpenAI Canvas: Key Differences Explained
Practical Applications of SDR with CaribouLite
The CaribouLite transforms your Raspberry Pi into a powerful SDR platform, allowing a wide range of practical applications. Here are some of the most common uses:
- Tuning into FM radio stations to listen to local broadcasts and explore signal quality.
- Monitoring weather radio frequencies for real-time updates and emergency alerts.
- Exploring Wi-Fi bands to analyze signal activity and understand network behavior.
- Decoding digital signals to gain insights into communication protocols and data transmission.
For advanced users, software like GNU Radio provides a flexible environment for designing and testing custom signal processing workflows. This allows you to experiment with advanced techniques, such as demodulating complex signals or building your own communication systems. The versatility of the CaribouLite and Raspberry Pi combination ensures that the possibilities are limited only by your creativity and technical expertise.
Optimizing Hardware Configuration and Addressing Challenges
To fully use the CaribouLite’s capabilities, it’s essential to optimize your hardware setup. Here are some tips to enhance performance and usability:
- Use a mini rack system with Power-over-Ethernet (PoE) support to simplify power delivery and reduce cable clutter.
- Experiment with different antennas using SMA connectors to improve signal reception and explore various frequency ranges.
However, integrating the CaribouLite with the Raspberry Pi can present challenges. For instance, managing power requirements and making sure stable signal routing are critical for maintaining consistent performance. Careful planning and testing are necessary to address these issues. Additionally, stacking the CaribouLite on the Raspberry Pi may lead to heat management concerns, so consider using cooling solutions like heatsinks or fans to prevent overheating during extended use.
Performance and Connectivity Considerations
The Raspberry Pi 4 provides sufficient processing power for most SDR tasks, but more demanding applications may require additional resources. In such cases, offloading data processing to an external computer can help maintain performance. Stable connectivity is also crucial for handling large volumes of radio frequency data. Here are some recommendations to ensure reliable operation:
- Use a wired Ethernet connection for high-speed and stable data streaming, especially during intensive tasks.
- Use visualization tools like GQRX to analyze signal spectrums and waveforms for better insights.
These configurations not only enhance the efficiency of your SDR setup but also improve your ability to interpret and work with the data you receive. By addressing connectivity and performance considerations early, you can create a more robust and enjoyable SDR experience.
Exploring the Radio Frequency Spectrum
The combination of the CaribouLite and Raspberry Pi opens the door to the fascinating world of radio frequencies. Experimenting with different antennas, frequency ranges, and decoding techniques allows you to uncover hidden signals and gain a deeper understanding of wireless communication. Affordable SDR options like RTL-SDR dongles can complement your setup, providing additional flexibility for hobbyists and enthusiasts.
This hands-on approach to exploring the radio frequency spectrum not only enhances your technical skills but also fosters a greater appreciation for the complexities of modern communication systems. Whether you’re a beginner or an experienced user, the CaribouLite offers a practical and engaging way to dive into the dynamic world of SDR technology.
